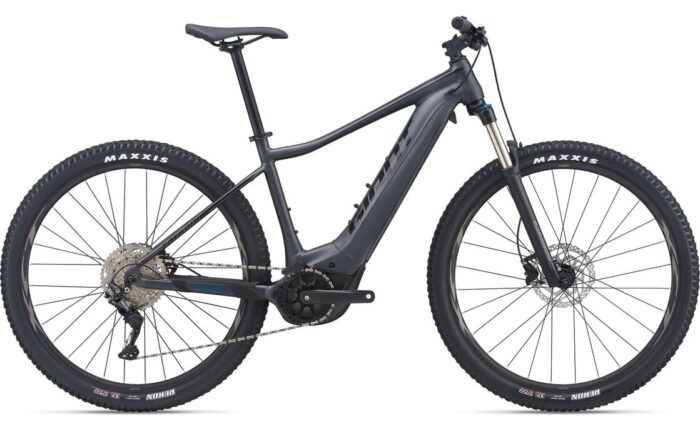

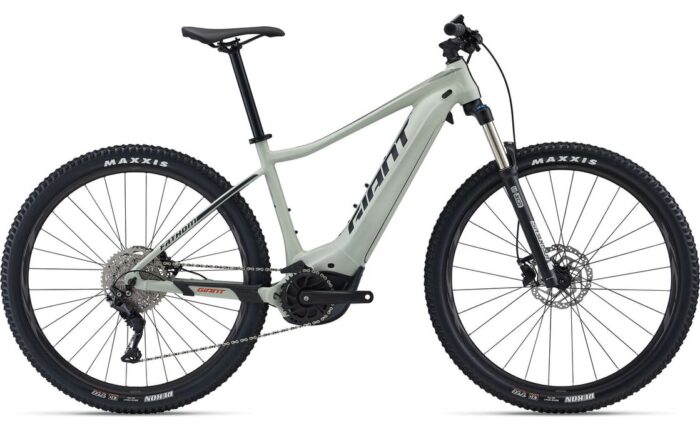

Giant Fathom E+ 2 | 2022

€3,600

Color

Frame Size

Clear

Description

AT A GLANCE
e-bike type	e-mountain bike, e-bike XXL
model year	2022
motor support	25
circuit manufacturer	Shimano
circuit type	derailleur
suspension	hardtail
brake type	Hydraulic disc brake
color	Gunmetal Black, Desert Sage (White)
frame size	S, M, L, XL, XXL
wheel size	29”
frame shape	MTB Hardtail
DRIVE UNIT
engine	SyncDrive Sport 36V 250W
battery pack	500Wh
screen	RideControl Dash 2in1 – SG
charger	EnergyPak Smart Charger Compact, 4A
CIRCUIT & DRIVE
circuit	Shimano Deore M5120 Shadow Plus, 10-speed derailleur
shifter	Shimano Deore M4100
rear derailleur	Shimano Deore M5120 Shadow Plus, 10-speed
crankset	FSA Comet, FSA MegaTooth direct-mount 36T chainring
cassette	Shimano Deore CS-M4100, 11-46T
Chain	KMC e.10 Sport, e-bike optimized
FRAME & FORK
frame	AluxX frame, integrated speed sensor, 141 mm QR
Fork	SR Suntour XCR 32 Coil LO, 120mm travel, Boost 15x110mm
BRAKE
braking system	Shimano BR-MT200, hydraulic disc brake, 180mm
brake lever	Shimano BL-MT200
IMPELLERS
rims	GIANT XCT 29”, tubeless-ready, 25 mm inner width
Hubs (F/H)	Shimano MT401 / Shimano MT200
spokes	stainless steel
tires	Maxxis Rekon, 29×2.4”, EXO
COCKPIT
handlebars	GIANT Connect TR Riser 31.8, 20mm rise
stem	GIANT Contact
handlebar grips	GIANT Tactal Single Lock On
seat post	GIANT, 30.9mm
pedals	Platform pedals, aluminum
saddle	GIANT sports
FURNISHING
porter	compatible with GIANT Rack-It Metro (Lite)
stand	compatible with GIANT KSA18
MISCELLANEOUS
maximum weight allowed	156kg
